U-Joints for Axles and Driveshaft

  • March 15, 2017
  • 111 Downloads
  • 5 Likes
  • Blender 2.7x
  • Render: Cycles
  • Creator: Dee334
  • License: CC-0
You must be logged in to download.

Description:

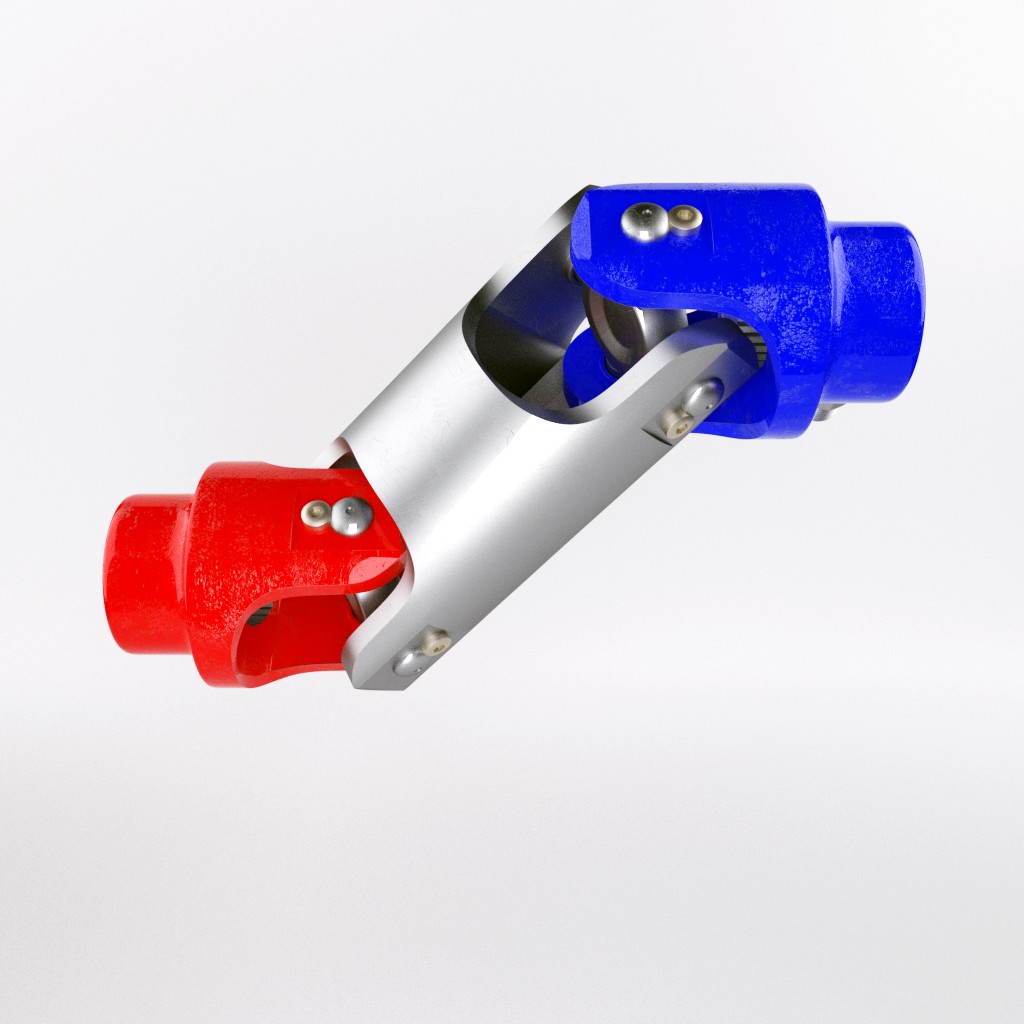

Universal joints, more commonly known as U-joints, are used in automotive driveshafts and front steer axles where rotational power needs to be transmitted between two misaligned shafts. They are comprised of a central cross with four trunions on which four sealed caps with internal needle bearings ride. The caps are held in place and within the yokes by snap rings.

U-Joints joints hard-sub animated
