Spokes & Particles Staff Pick

  • February 28, 2014
  • 611 Downloads
  • 10 Likes
  • Blender 2.6x
  • Render: Cycles
  • Creator: rianvermeulen
  • License: CC-0
You must be logged in to download.

Description:

Hi, guys,

the Filesize of my latest blendering (a car, the CG-community desparately needs more car-models) is forcing me to do some serious vert-cutting. Serious being some 80% and up. This is new to me and needs some figuring-out, but here's a start.

It's a HIGH-POLY/LOW-VERTSCOUNT SETUP for wheels and tyres.There's previews of both. The numbers:

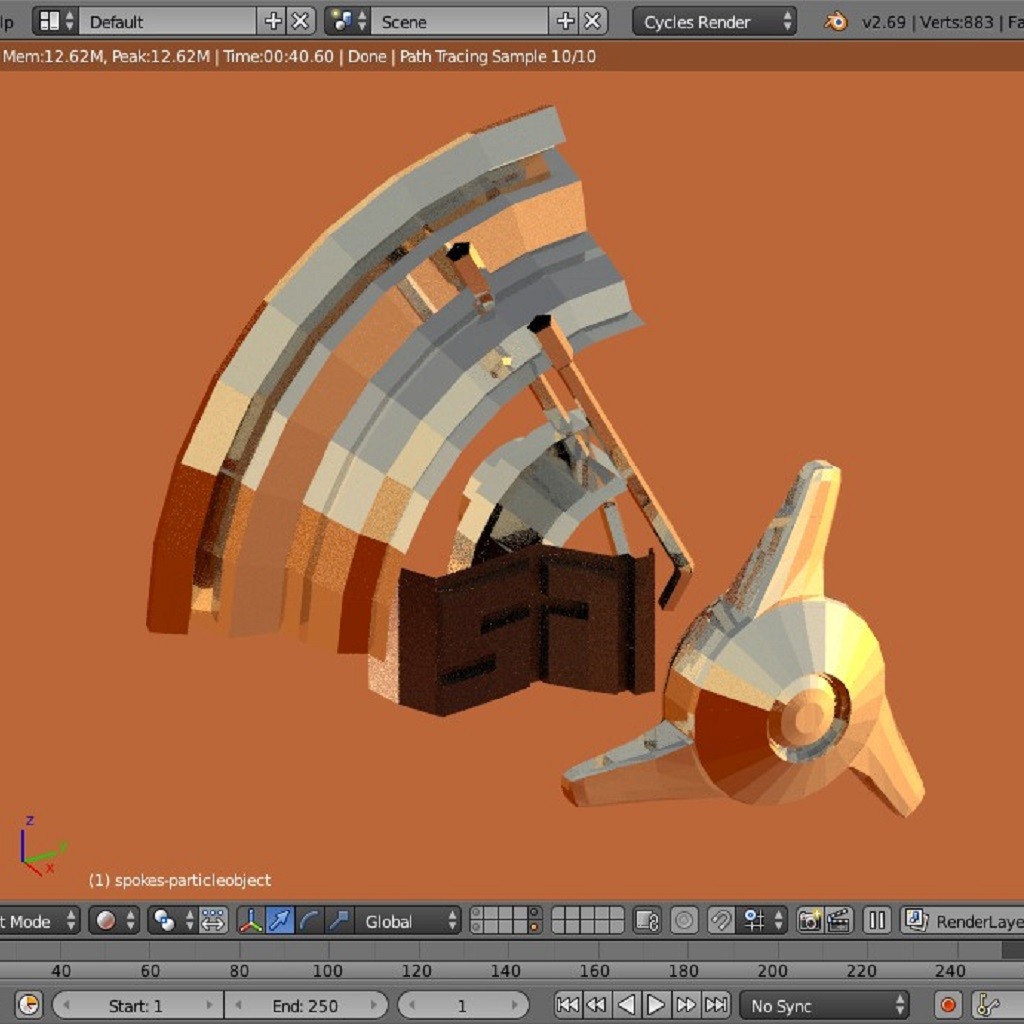

total vertcount without modfiers: 937 vertices: 883 for the wheel, plus 64 more for 3 emissionmeshes. With modifiers: 38072 verts, 62656 triangles.

total count on the emission-dupli's: 55772 vertices and 95696 triangles.

In short: appending this wheel add's 937 vertices to your file and then copiing a second: another 64, and both will add 95696 triangles to your render.

It can be copied, scaled and dragged around just like any other mesh(group), but I locked rotation on the y-axis of the parent-empty, so it's fit for steering and roling from any viewport-angle.

There's a lighting setup too. Got bored with it first, and rendered with the skytexture only, but I changed my mind later-on and did a proper render.

Check it out! :)
