Box smoke evacuation

  • September 11, 2015
  • 50 Downloads
  • 0 Likes
  • Blender 2.7x
  • Render: Blender Internal
  • Creator: enolynn
  • License: CC-BY
You must be logged in to download.

Description:

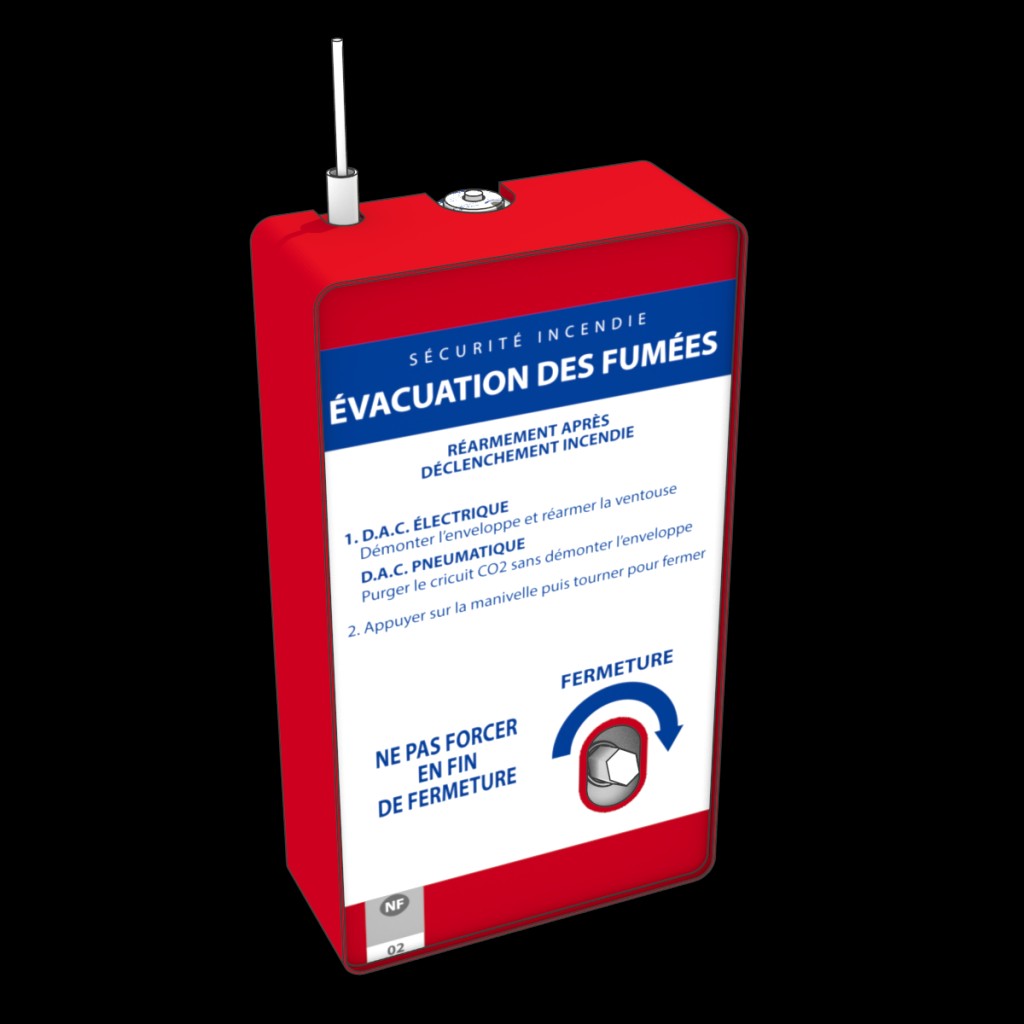

This box is used to manipulate the smoke hatches using a crank inserted on the six sides head at the bottom. The cable that goes down the hatch is connected to the box and enter by the top left. It is shown here cut. This box is part of fire safety equipment. Zip archive content svg file to edit text.

fire security hatches opening smoke
