TO-220

  • December 28, 2015
  • 120 Downloads
  • 2 Likes
  • Blender 2.7x
  • Render: Cycles
  • Creator: ErwinDamsma
  • License: CC-0
You must be logged in to download.
Previous Next

Description:

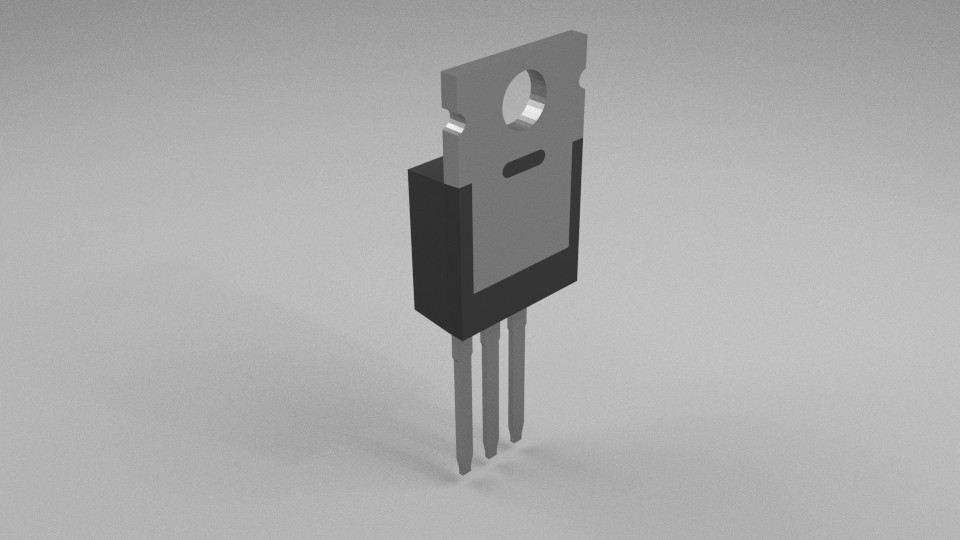

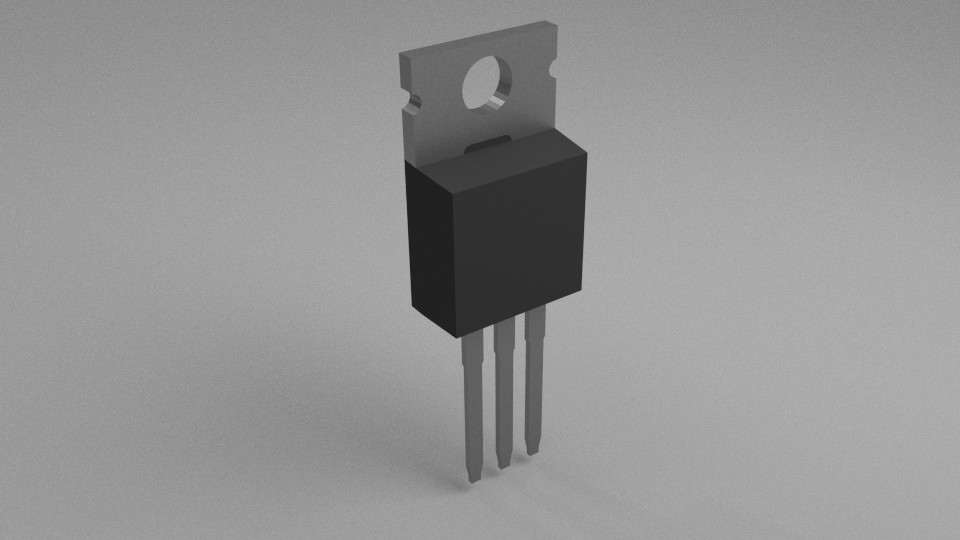

TO-220 electronic component package. commonly used for discrete semiconductors as transistors and silicon-controlled rectifiers.

I'm currently learning 3D modelling with Blender and made this recently.

Im making more components and i will upload them all at once as soon as they're done.

electronics TO-220 MOSFET regulator transistor rectifier IC integrated circuit power package 7805 7812 LM317T LM340 IRF510

Comments:

  • kaki profile picture
    kaki

    Is this NPN or PNP?

    Written January 05, 2016
  • ErwinDamsma profile picture
    ErwinDamsma

    PNP offcourse ;)

    Written January 08, 2016
