Parametric door (V1)
- February 26, 2016
- 2,381 Downloads
- 37 Likes
- Blender 2.7x
- Render: Cycles
- Creator: piergi
- License: CC-0
Description:

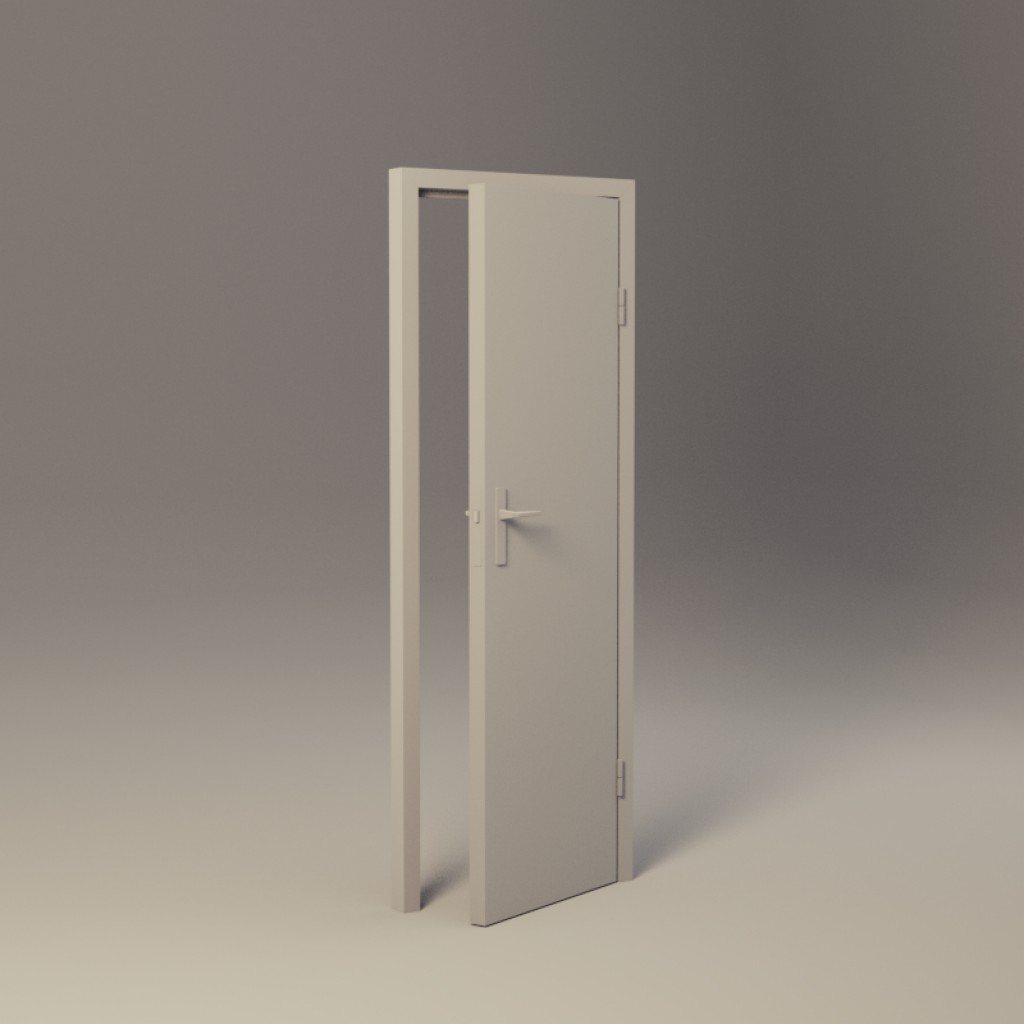

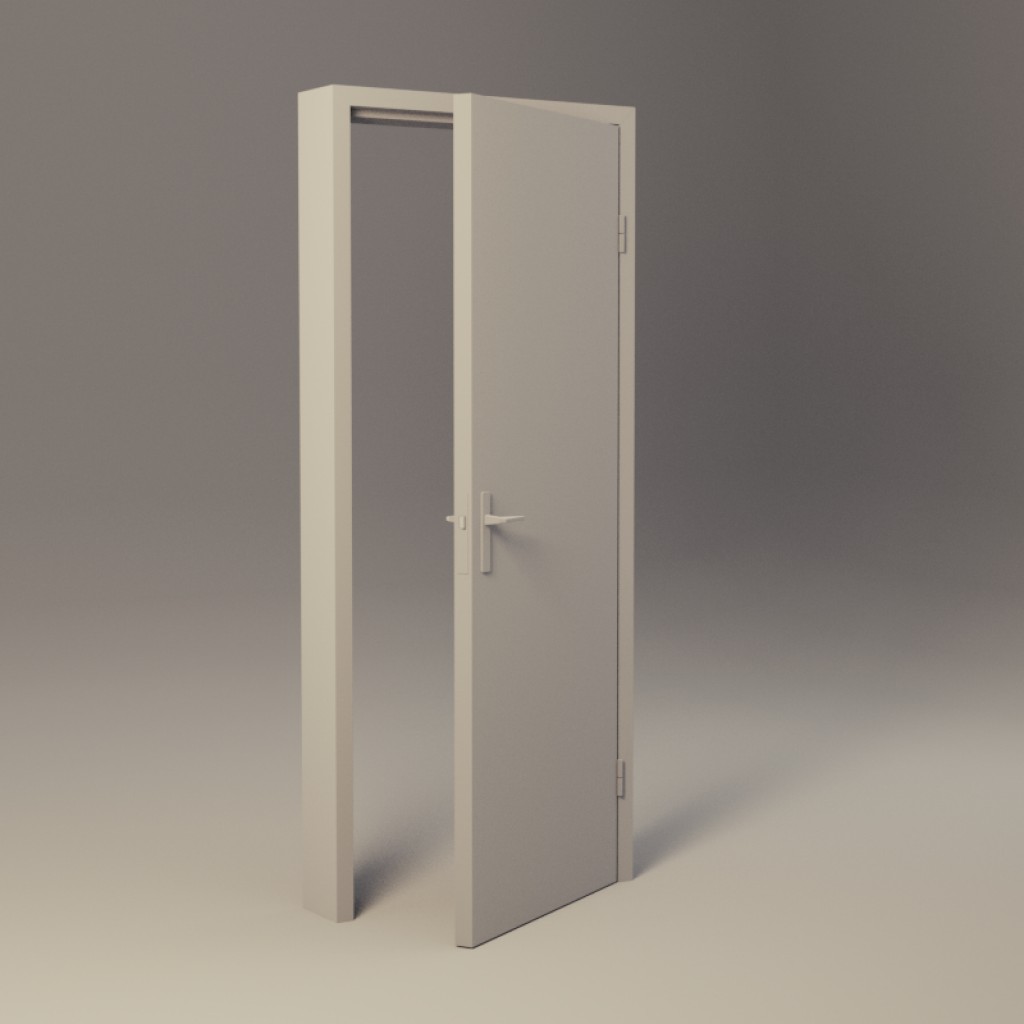

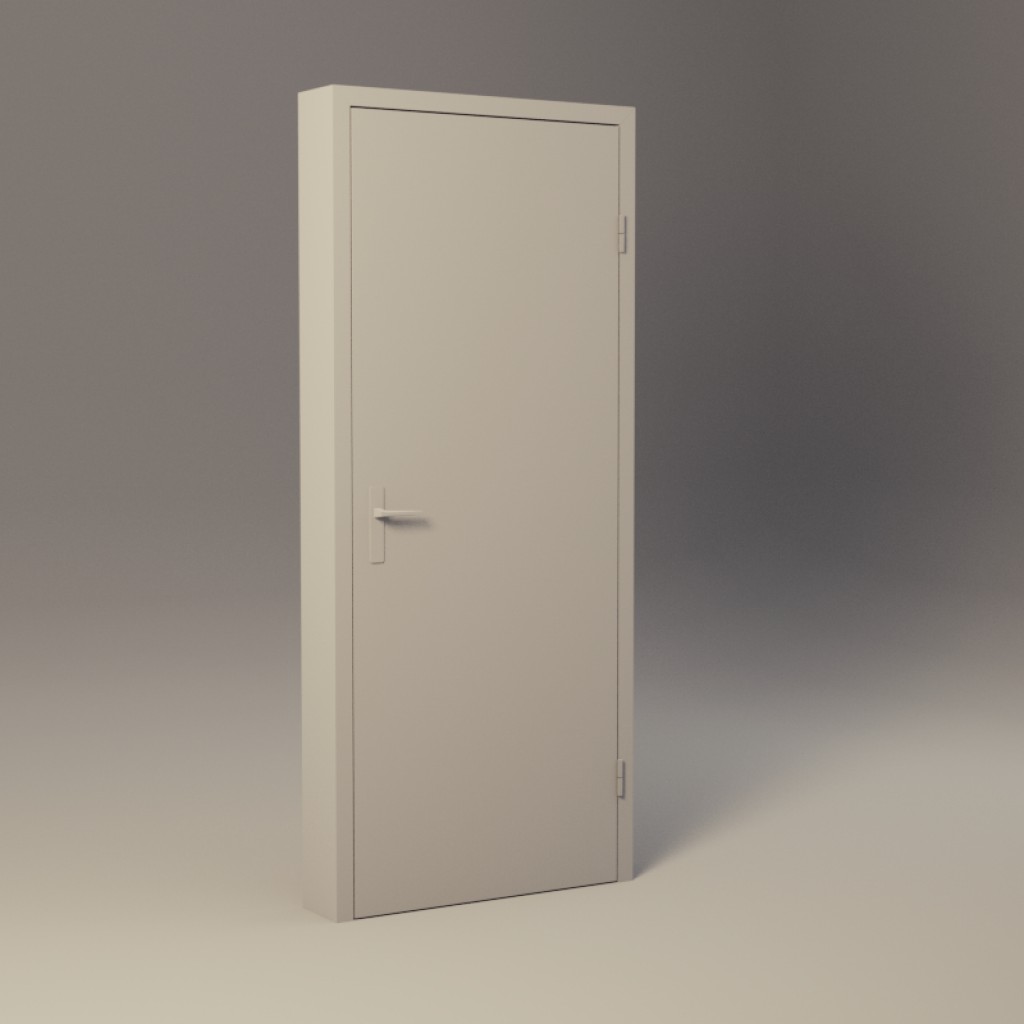

An adjustable inner door. The height, width and frame thickness, as well as the opening of the leaf, can all be independently controlled via custom properties attached to the door frame object.
The model is already UV-unwrapped, but the UV will likely appear stretched for end-of-scale transformations.
Comments:
-
-
-
piergi
Written May 10, 2016Thanks, I am modelling a parametric window at the moment, nothing fancy, just a regular two panes window, I guess I will post it in the week end.
-
afecelis
Written May 13, 2020Thank you so much! this resource is great. How do you apply/collapse the mesh to make it non parametric? If I export the doors as collada to be imported into another 3d program they will be at their default values and not the ones set parametrically.
-
piergi
Written June 05, 2020Hi, sorry for the late answer.
To apply the parameters you can do the following:
— select the door frame and go to "mesh panel" (the green triangle) -> Shape Keys
— in the dropdown menu click "New Shape From Mix"
— starting from "basis" delete every shape key one by one
— repeat with the door leaf.
I hope this is clear enough, otherwise feel free to ask again. Maybe there are also quicker ways, I usually do it like that, though.
-
-
great job and useful
