Control valve piping

  • August 11, 2016
  • 1,094 Downloads
  • 19 Likes
  • Blender 2.7x
  • Render: Cycles
  • Creator: seeker47
  • License: CC-0
You must be logged in to download.

Description:

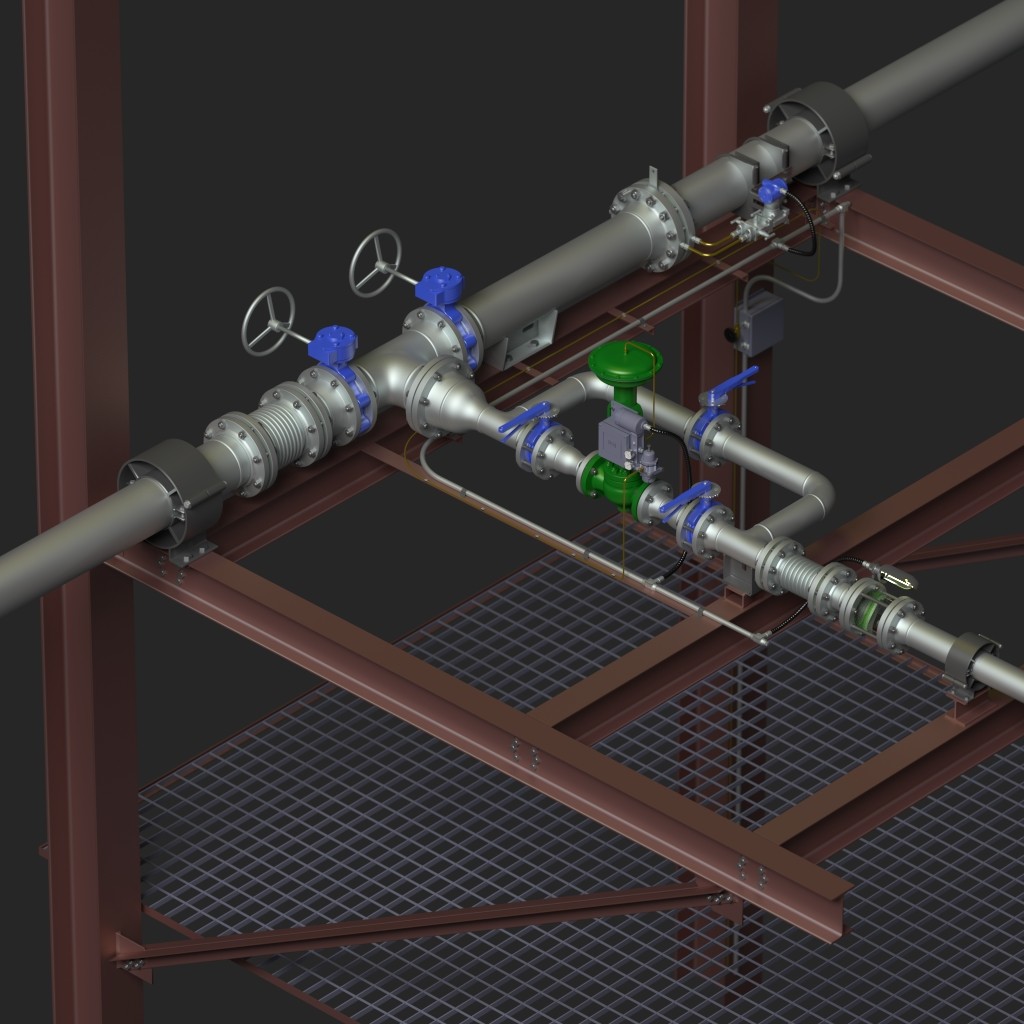

An accurate welded pipe and fitting assembly including a Fisher cage guided control valve and pneumatic actuator, Keystone manual butterfly valves , Rosemount differential pressure transmitter, orifice plate, pipe guides and anchors, and bellows expansion joints. This is a high poly blend with very simple materials. The background was removed because of license restrictions.
