Jigsaw Puzzle V2 Staff Pick

  • September 22, 2019
  • 1,025 Downloads
  • 69 Likes
  • Blender 2.9x
  • Render: Cycles
  • Creator: jkon
  • License: CC-0
You must be logged in to download.

Description:

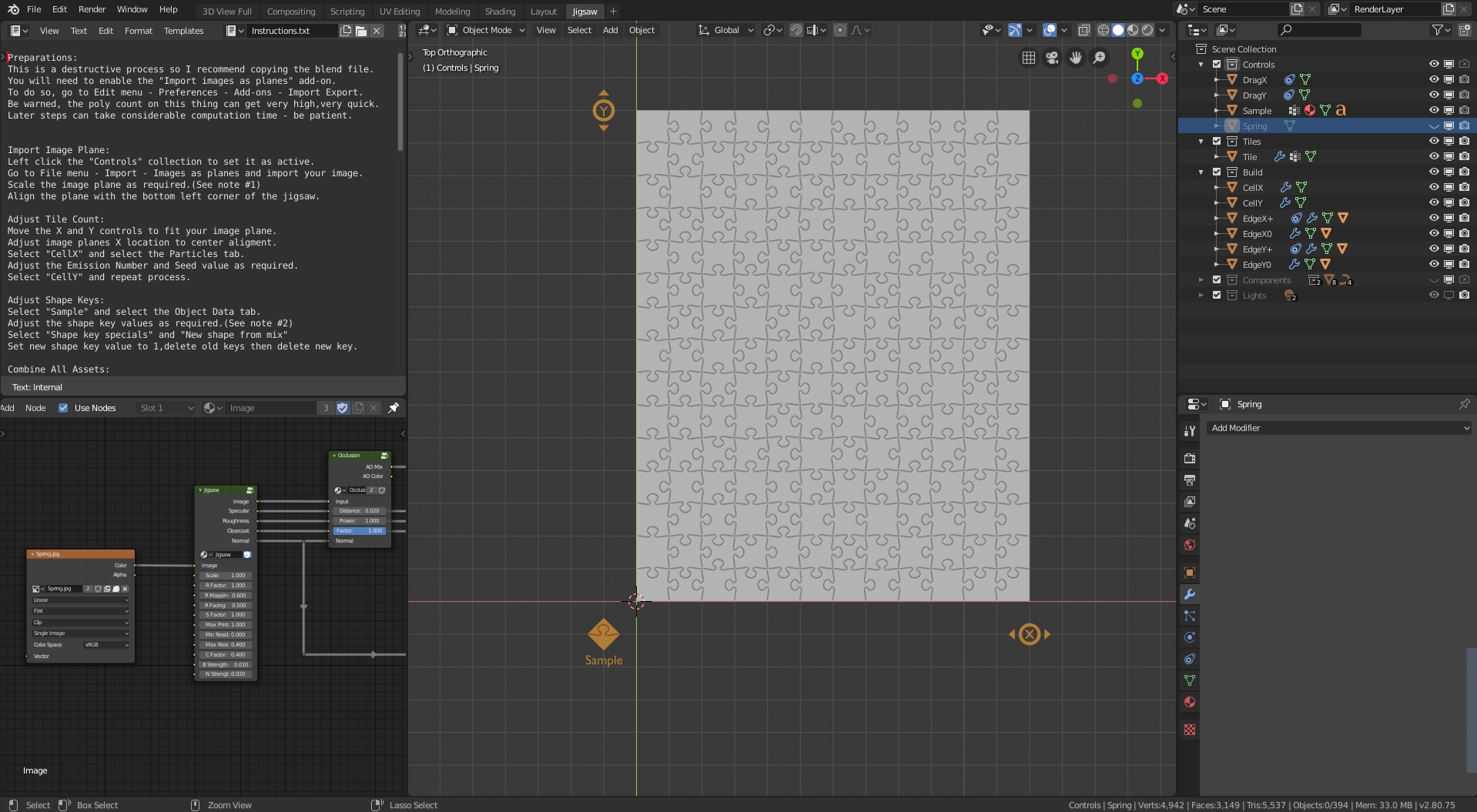

This is a particle based jigsaw I developed for a personal project. The image, tile count and coupling shape can be customized. The file contains two scenes, one called Demo, contains the Spring jigsaw as shown in the demo image, the second scene is called Build and is for creating your own jigsaw.

This is not for the faint hearted, there are quite a few steps involved in creating a new jigsaw. I have outlined the instructions as clearly as possible in a packed text file but I recommend downloading the PDF Instructions as they are easier to follow.(lots of pictures)

  • The short of it is:
  • Import image as plane
  • Adjust tile count
  • Set/apply shape keys
  • Combine parts
  • Apply modifiers
  • Separate parts

Be warned,the poly count can get very high,very quick. Preview images have about 350k verts each. Materials are good for Eevee or Cycles .(Previews are Cycles)

Update: V2 01/02/21 * Added Demo Scene * Updated Instructions
