Random Number Generator
- December 19, 2020
- 88 Downloads
- 8 Likes
- Blender 2.9x
- Render: Cycles
- Creator: billhails
- License: CC-0
Description:
If you use the Object Info or Particle info nodes' "random" output to control a Hue/Saturation/Value node, you will likely have run into a limitation. If you use the same random value to control all three of H, S and V then those values are not independant, so a particular resultant hue will always have the same saturation and value.
This little node group implements a very simple pseudo-random number generator that takes a random value between 0 and 1 as input and produces another random number in the same range as output. The output value will vary wildly for even very small changes in the input value.
You can chain random number generators together, as in the example texture provided, which uses the original Object Info Random value for the Hue, one iteration of the RNG for saturation and a second iteration for value.
The three preview images show:

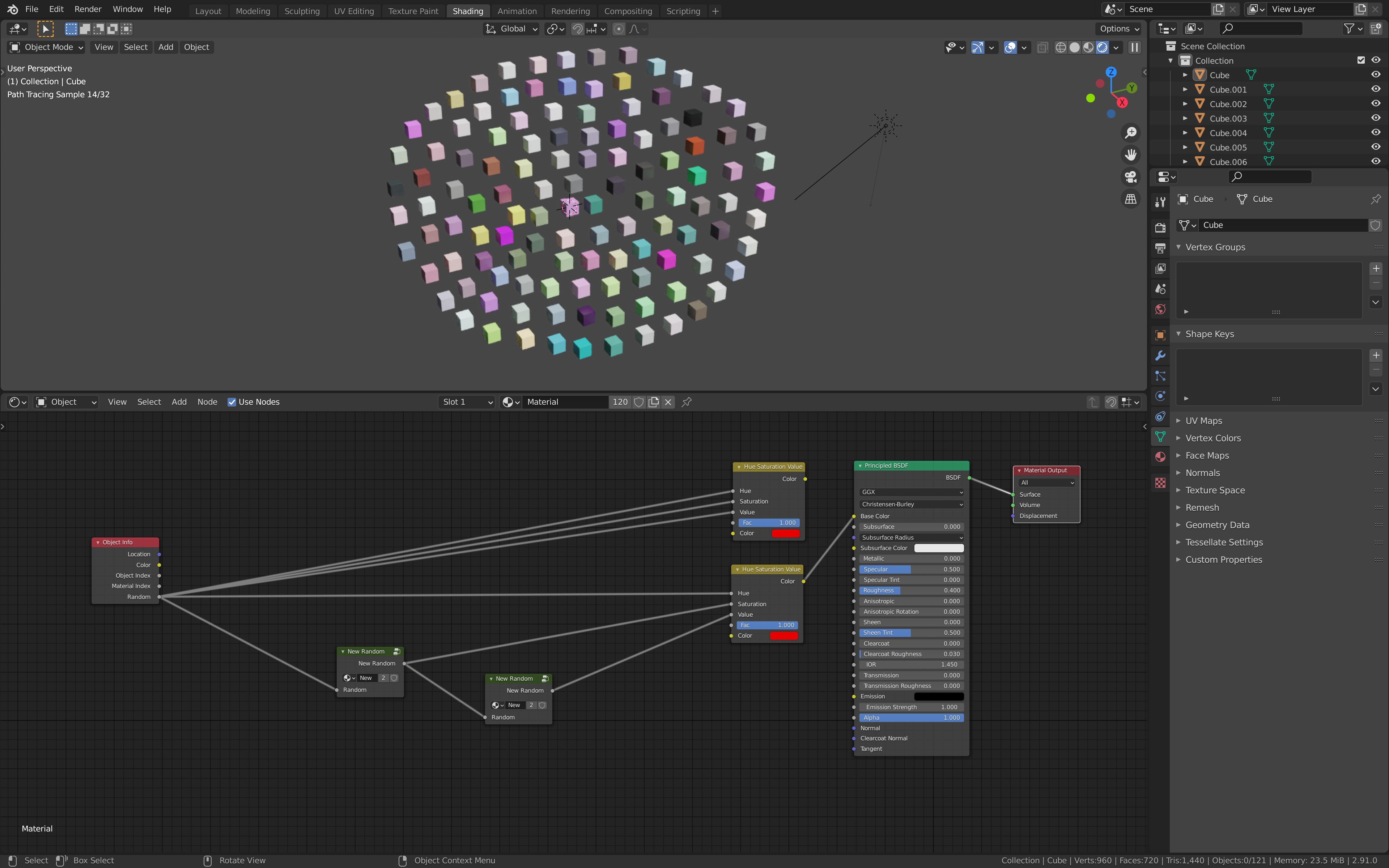

- the blendfile as provided.

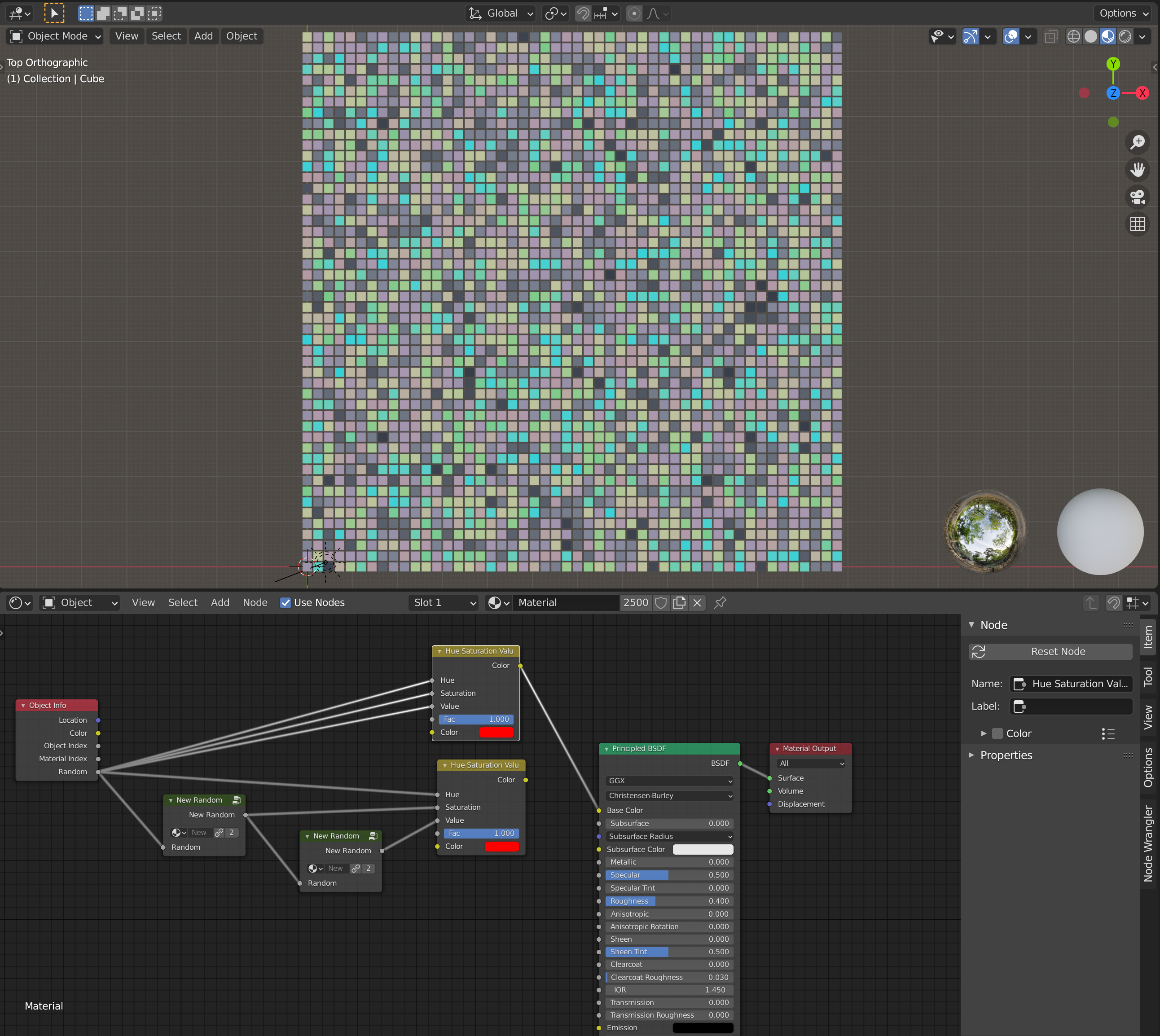

- an example using the nodegroup on a large array of cubes, for comparison with:

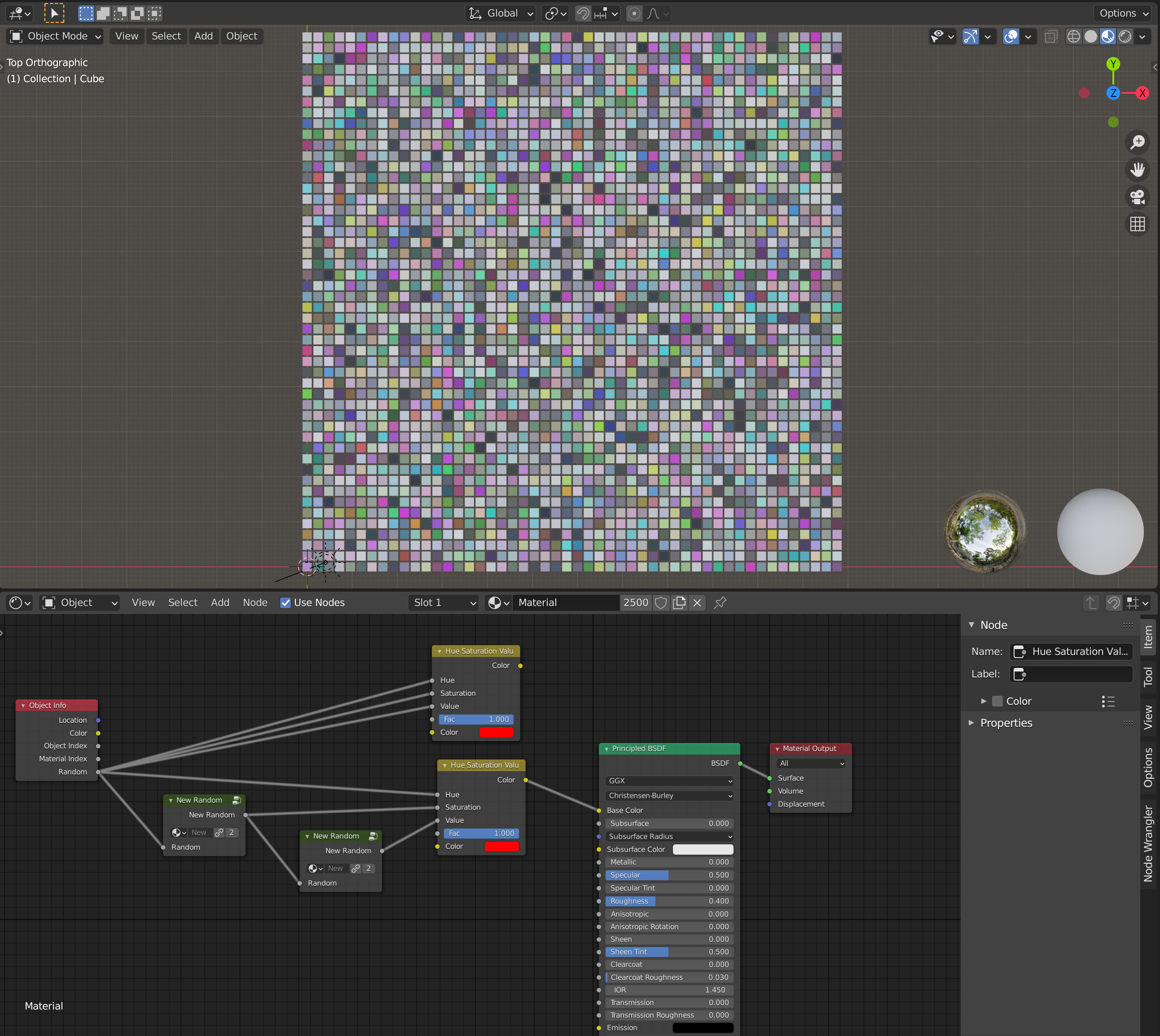

- an example using the same random value for H, S and V to show the limitations of a common random value.
I guess there could be many other uses for independantly varying random numbers per object/particle, the HSV example is just a common use case.
To use, choose File > link from your blendfile and browse to where you saved this file, then browse into the file, section "Node Tree" and select "New Random", then in your node editor, "add>group>New Random".
If anyone is interested, it uses the Linear Congruence Method:
X_1 = aX_0 + c mod m
after first multiplying by 2^16. Afterwards it divides the result by 2^16 to get back to the range 0-1. Values for a, c and m are somewhat arbitrary, I've chosen sqrt(2^16), (2^16)/2 and 2^16 respectively to give a good distribution.
Comments:
-
CobyRandal
Written March 19, 2024Bill, thank you! Your follow up was really helpful as well. I think Noise 4D is also very cool because you can plug Object Info>Location into the Vector of the 4D Noise, changing the color by both the W factor and location of the object. You could even use drivers to get the location of separate object and bring those xyz values into a combine vector node that affects the Noise 4D vector. Or else simply modify the xyz values of the vector manually for a nice remix of the seed. Best wishes!
-
estool
Written September 29, 2024Our services come grooving Inserts in great value Cemented Carbide Inserts and deep hole drilling Inserts reliable. We make sure apkt inserts that Carbide Inserts bta deep hole drilling our Carbide Inserts products provide satisfaction to all bta drilling tool our tungsten carbide Inserts customers. Together, we can create a better future in turning Inserts price manufacturing.
Funny, after writing this little utility I discovered blender can already do this, just add a
Texture > White Noisenode, set it to 1-D, plug your input random in to W and get a fresh output random from the value.
