Tramp Steamship

  • March 02, 2023
  • 378 Downloads
  • 16 Likes
  • Blender 2.8x
  • Render: EEVEE
  • Creator: MajorNightmare
  • License: CC-BY
You must be logged in to download.
Previous Next

Description:

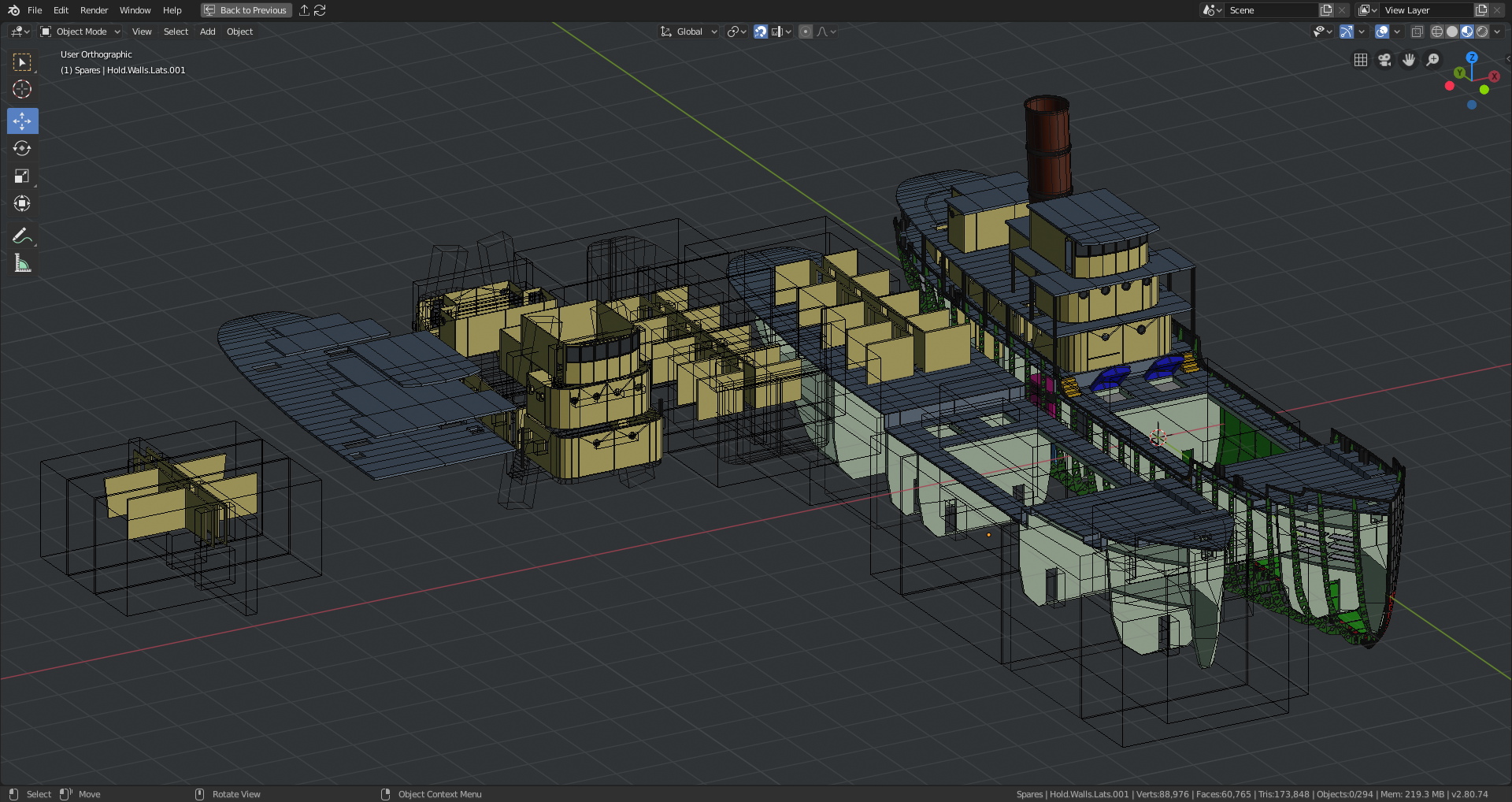

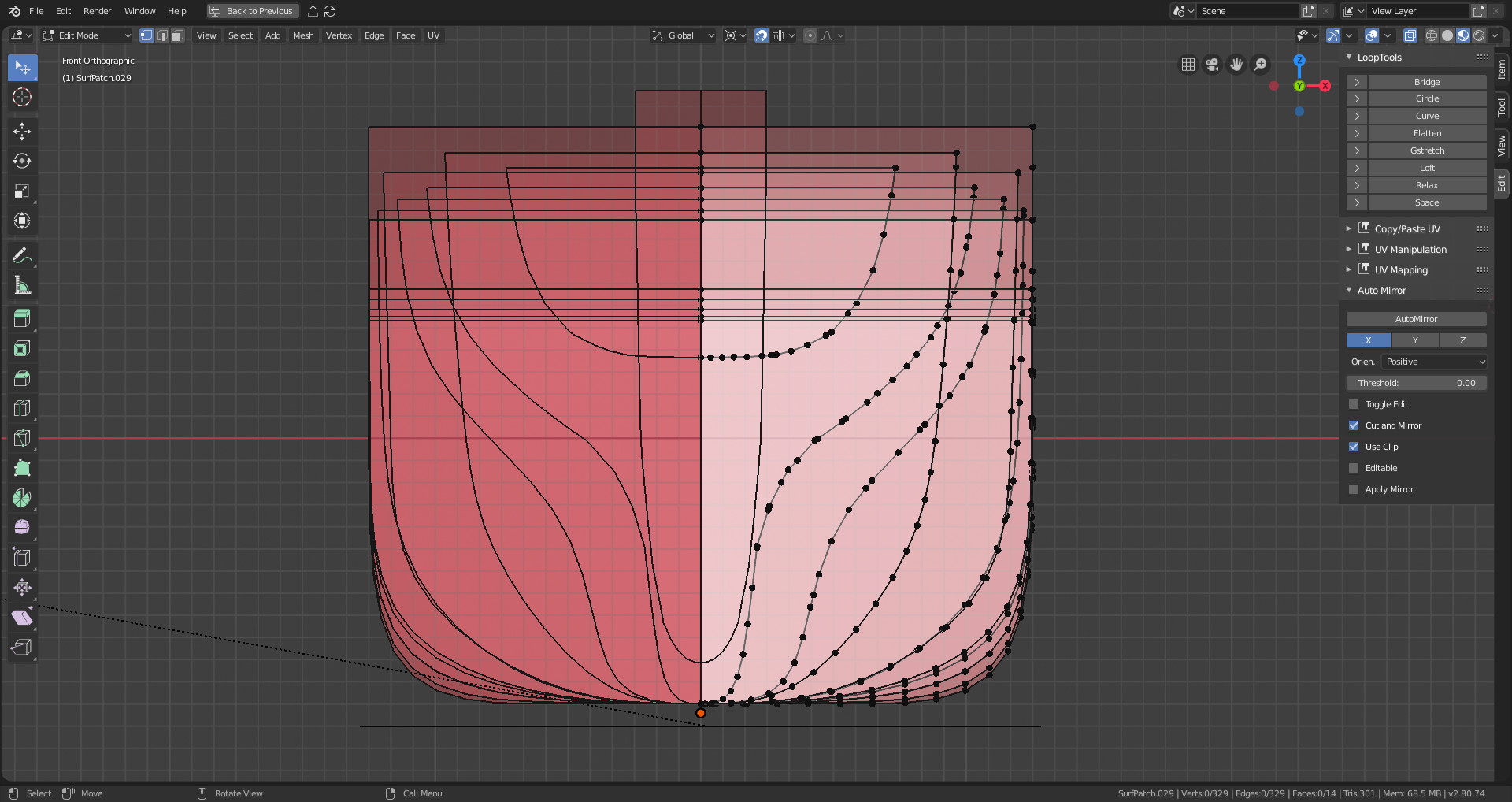

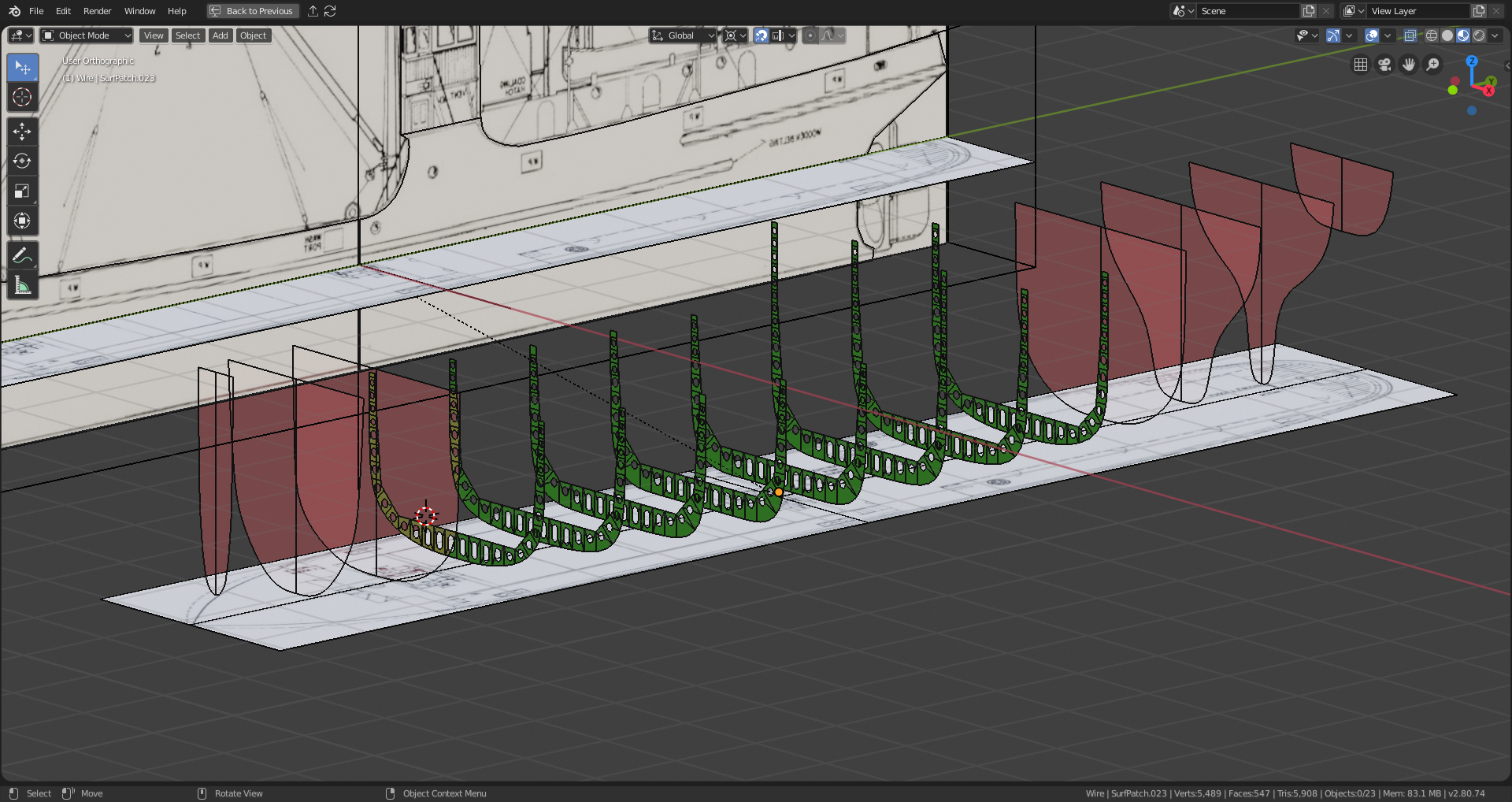

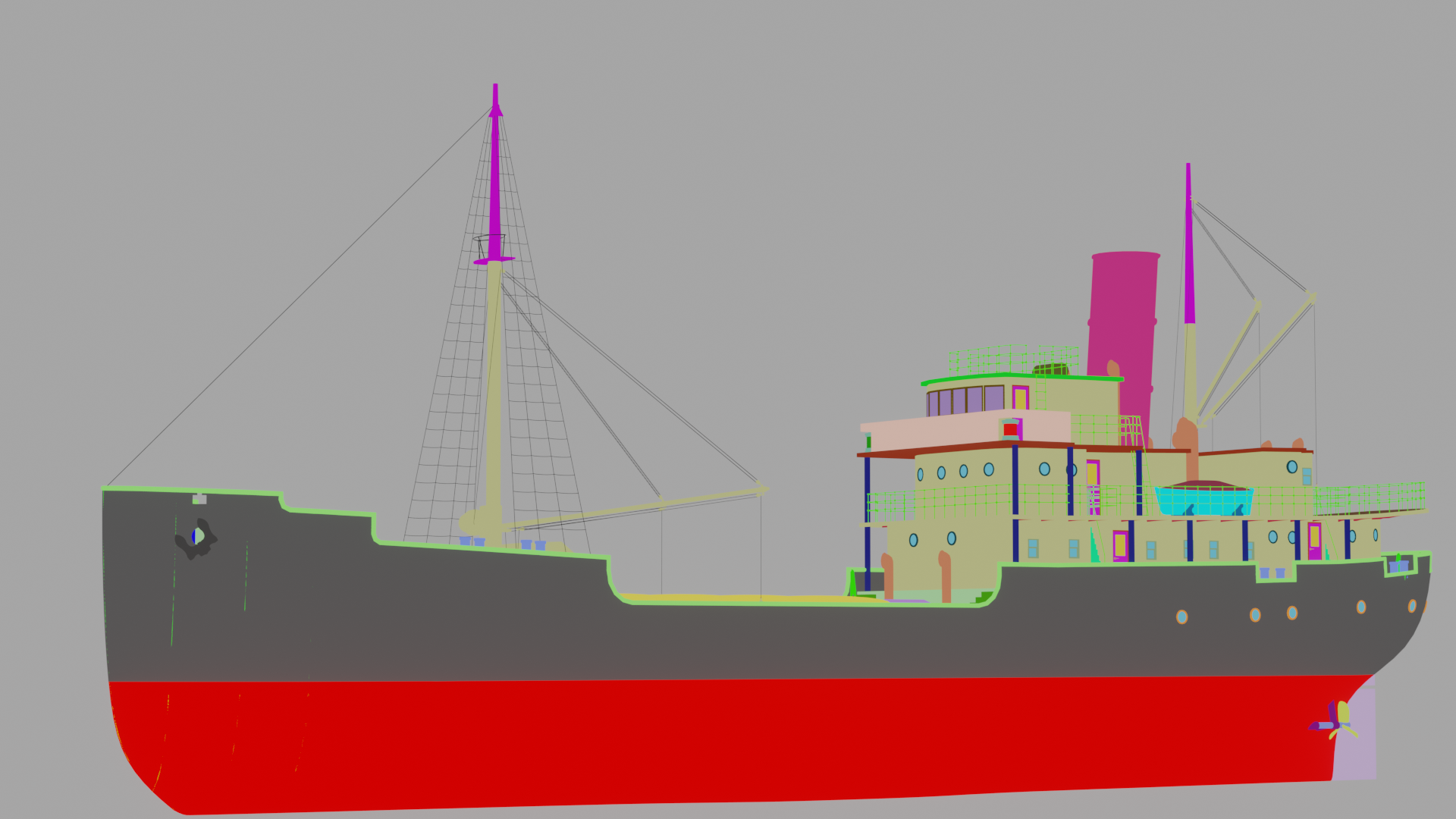

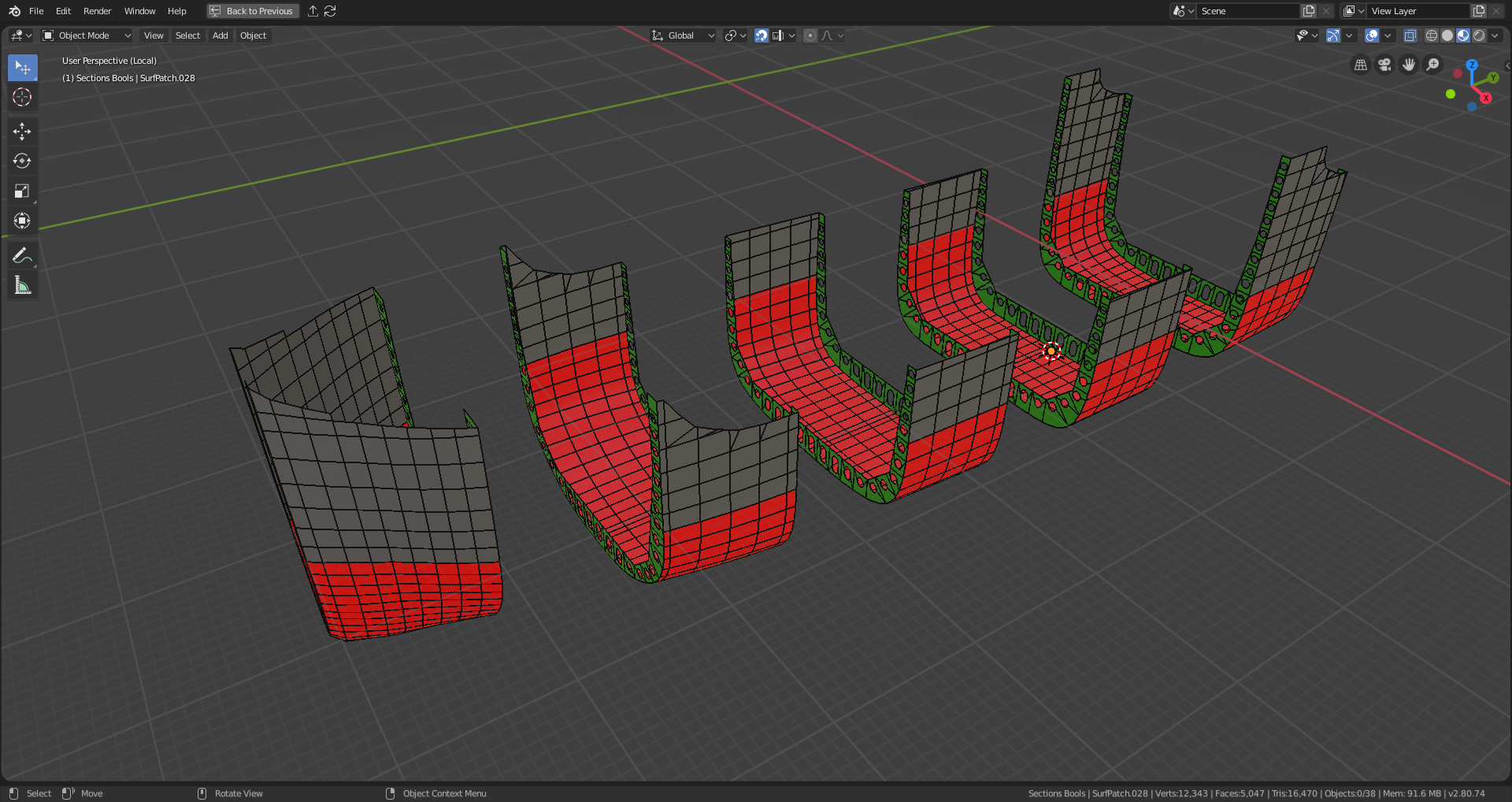

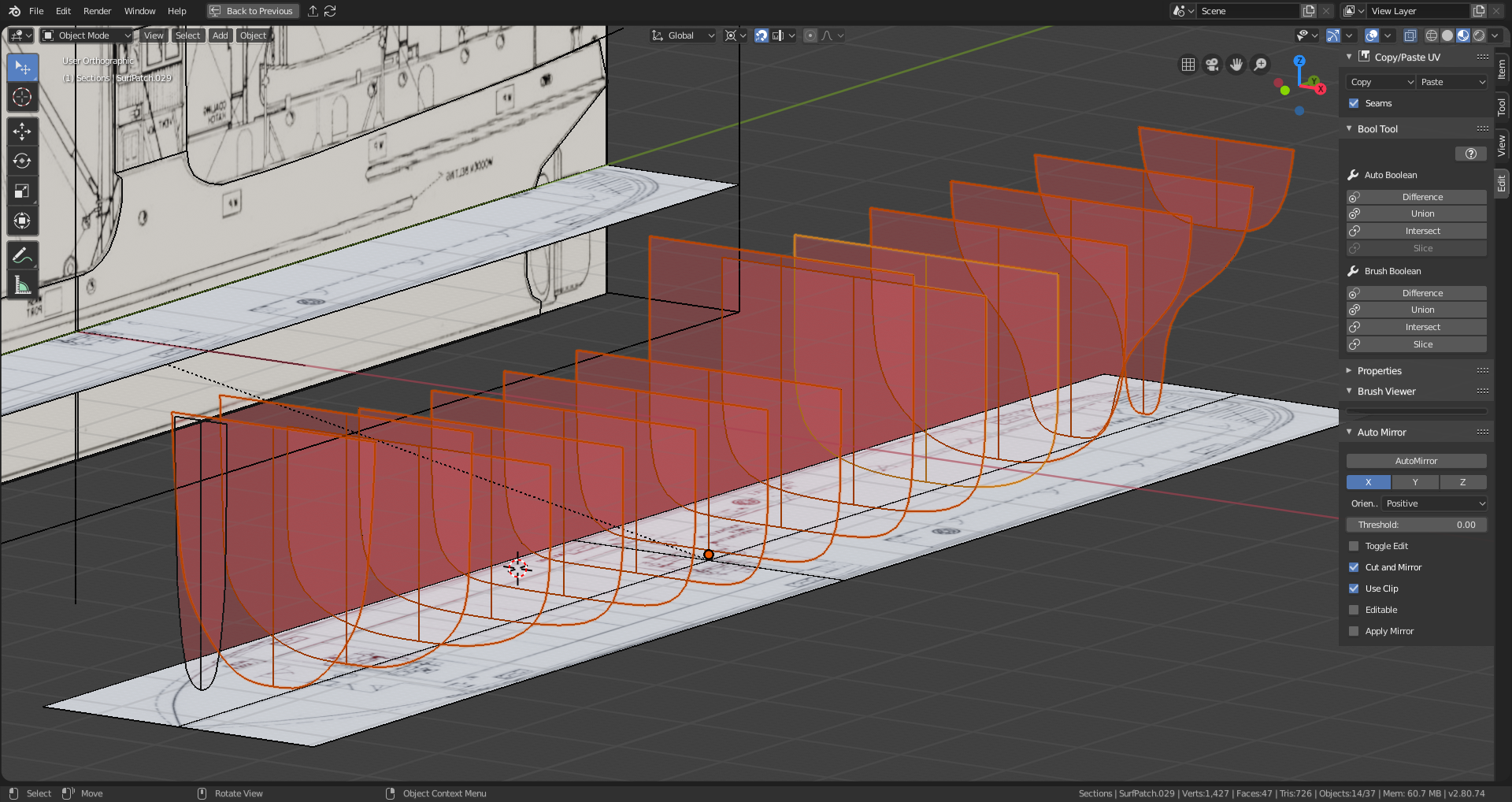

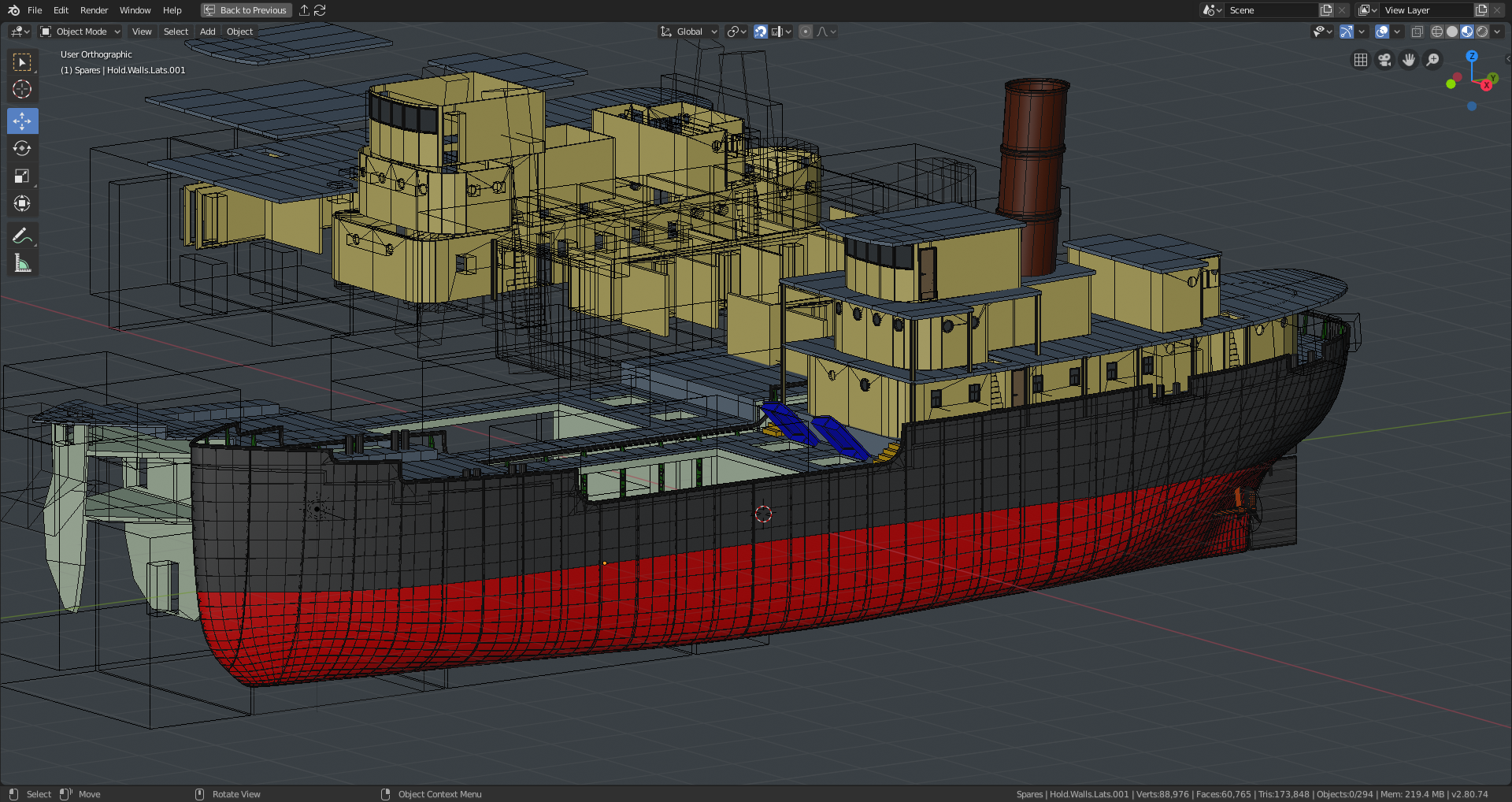

Tramp steamers were from the early 1900's, "a commercial steamship that has no regular schedule or published ports of call". The most model and texture detailing I've done to date. As a kid, helped build a couple of boats with my dad, so I had basic understanding of lofting, the process of drawing the spine and ribs of a boat. The early construction geometry and ref images, have been removed, but a good chunk was done with booleans(see pics). The new tech on the block "UDIM's" are used in movies like Pacific Rim Jaegers and Kaiju. Really big assets that need lots of individual textures(no tiling). The Steamship was textured in Substance Painter using UDIM workflow, (54 x 1k UV's) x (4 Metalness workflow textures: albedo, metalness, roughness and normals). That's 216 jpegs! UV addon "TexTools" was used to keep the hundreds of objects uv's all at the same resolution for consistency and to control the final size of the blend. Left the Vertex colors on the meshes for anyone that wants to re-texture in Substance Painter. UDIM's were converted to individual materials hence the 1001, 1002, 1003 mat names. Just add water.

NB: You can unhide the control empties to move the crane arms and hooks around by clicking on show overlays. Each crane has 2 empties, one to rotate the arm(sphere empty), 1 to hoist the the hook. Rotate one axis at a time on x or z. X axis lifts arm, Z rotates around the mast.

ship Substance Painter UDIM
