Setup for CAD style 2D/3D sectioning

  • February 18, 2012
  • 89 Downloads
  • 0 Likes
  • Blender 2.6x
  • Render: Blender Internal
  • Creator: sky_D
  • License: CC-0
You must be logged in to download.

Description:

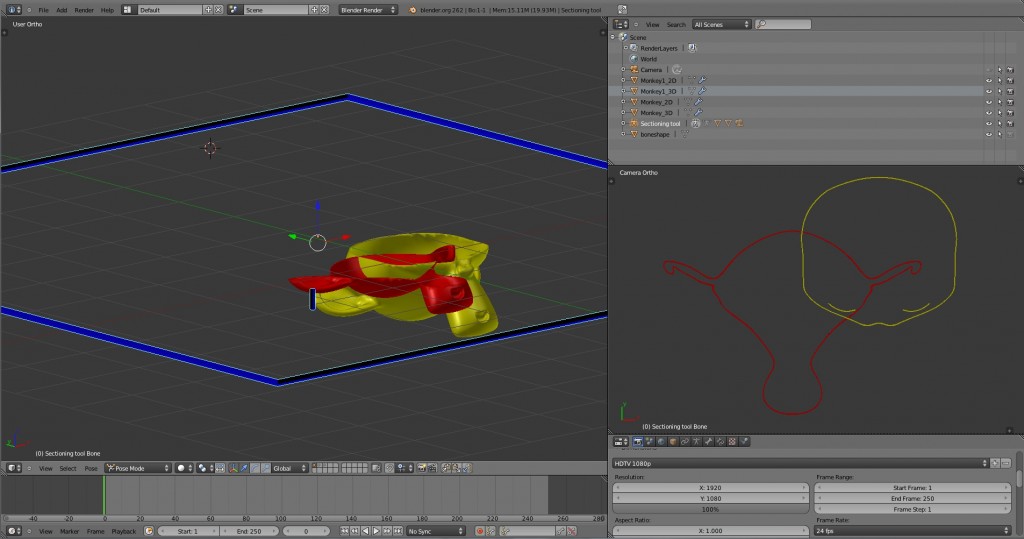

Setup for CAD style 2D/3D sectioning in Blender 2.62, intended mostly for technical models, renderings and animations.

Example animation created with this file:

http://vimeo.com/37010600

To control both 2D and 3D section just move or rotate blue controler bone.

Important notices:

  • fast computer hardware is required esp. when realtime sectioning is done in the viewport

  • Blender 2.62 or newer required due to boolean library

drawing technical section
