Toon Shading Outlines - Cel-Shading [GLSL|Realtime|BGE]

  • February 21, 2013
  • 823 Downloads
  • 4 Likes
  • Blender 2.6x
  • Render: Blender Internal
  • Creator: BsDev
  • License: CC-BY
You must be logged in to download.

Description:

Hey Guys, so here's something new:

A shader, which creates some nice looking Outlines for your cartoon games.

This Shader takes nearly no power, so it's quite useful with even big games.

Remember to credit us, if you use this code. Thanks!

To save Computing Energy, use my Logic ;)

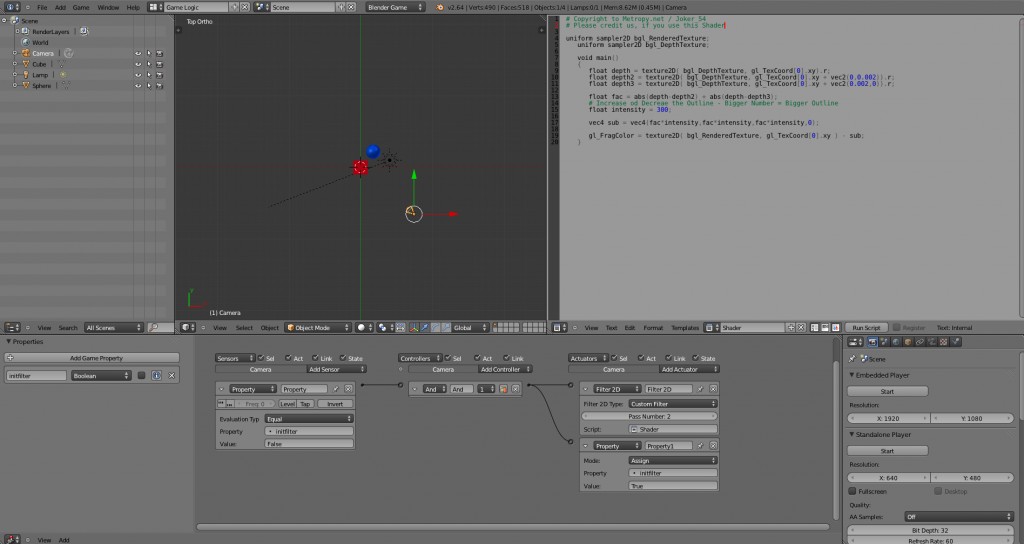

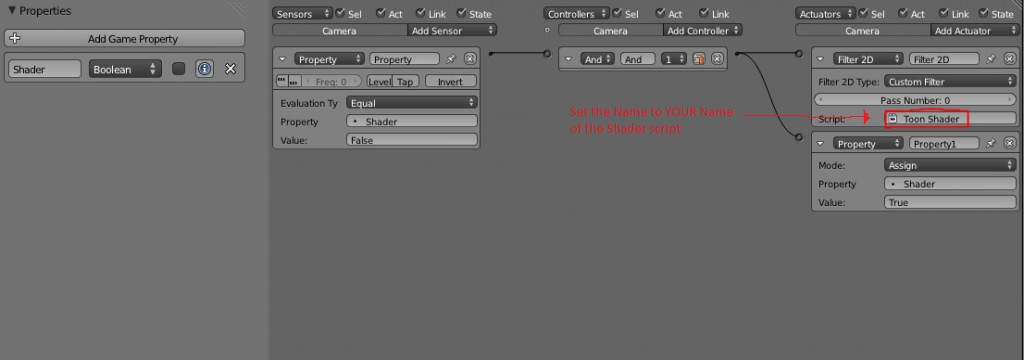

<img style="vertical-align: top; border: 10px solid black;" src="http://img3.fotos-hochladen.net/uploads/shadernodeset23c8yx4ukr.png" alt="Logic Bricks Setup" width="1106" height="388" />

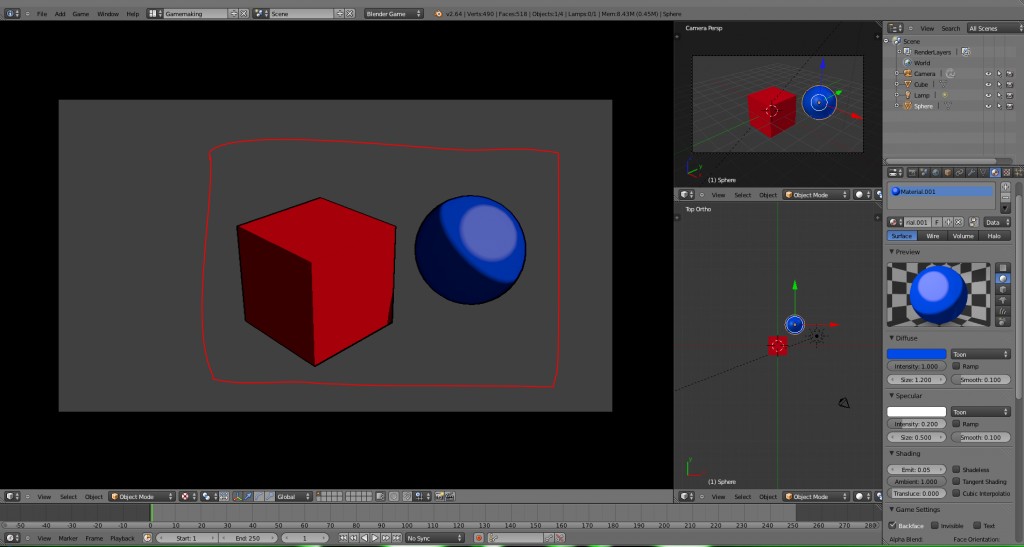

To get the Materials right, select both at specular and diffuse the Toon-Option.

Diffuse: Set Intesity to 1,0; Size to 1,2; Smooth, whatever you want.

Specular: Intesity to 0,2; Size to 0,45; Smooth doesn't matter.

Set the Emit Value to around 0,1 and 0.05.

Have Fun!
